Premium Industrial Valves at Competitive Export Prices

Valves designed for precise flow control, reliable shut-off, and long-lasting performance in demanding water and industrial applications. Our valves meet international standards, ensuring durability, safety, and optimal efficiency. They are ideal for water systems, dams, reservoirs, and industrial pipelines, providing cost-effective solutions without compromising quality.

Our Valve Range

• Needle Valves
• Howell Bunger Valves
• Globe (Supap) Valves
• Globe Valves
• Sleeve Valves
• Ball Valves

Detailed Valve Descriptions

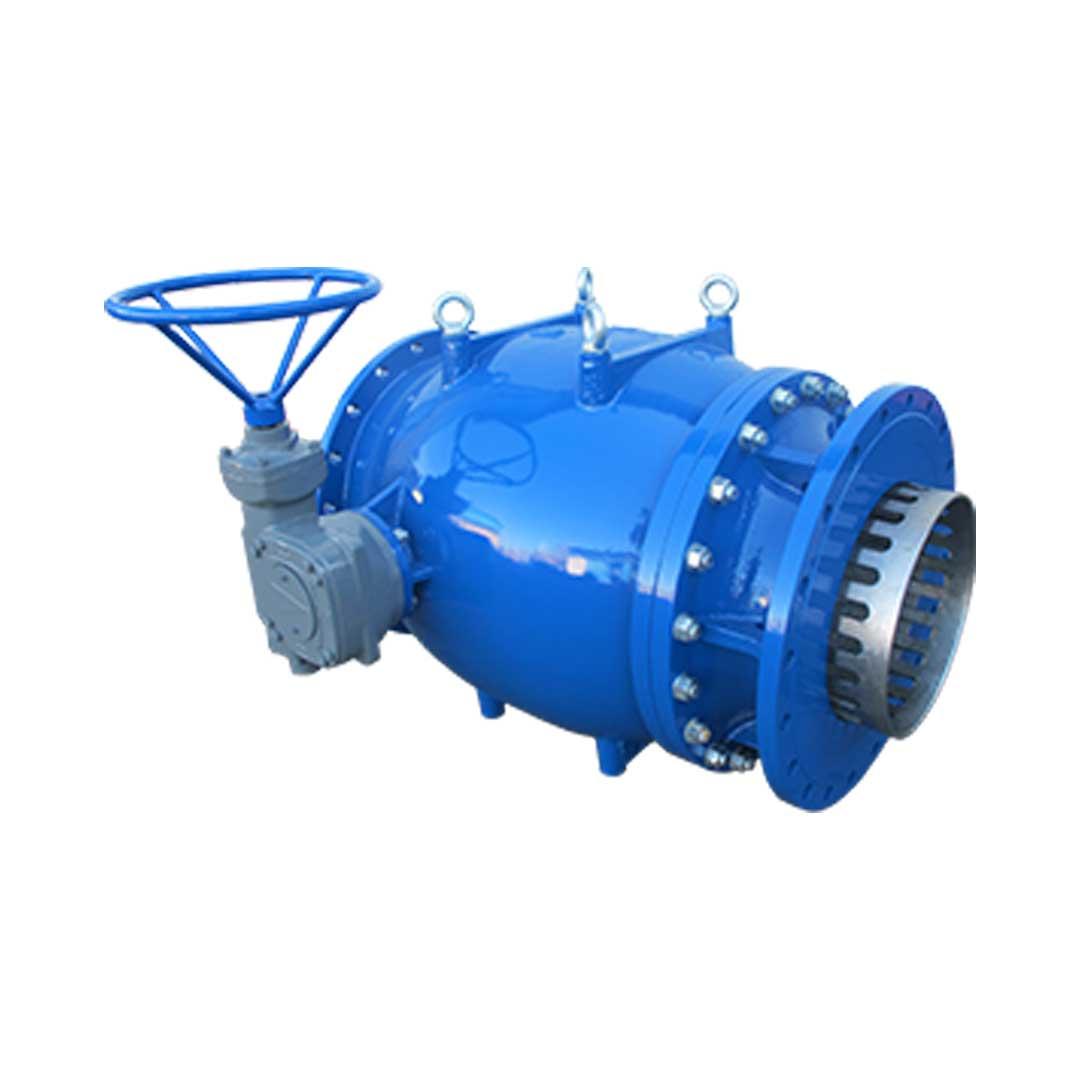

1. Needle Valve

DN Range: 200–2000 mm | PN Range: 10–25 bar

Needle valves are primarily designed for precise control of pressure and flow. They can significantly reduce downstream pressure by efficiently dissipating energy.

Applications:

• Fine-tuning flow in water distribution systems
• Low-pressure control in industrial pipelines
• Precise adjustment in hydraulic systems

Key Features:

• Accurate flow regulation with minimal vibration
• High resistance to corrosion and pressure
• Minimum pressure drop for efficient performance
• Powder-coated epoxy finish (≥250 µm), certified for potable water
• Standards: DIN EN 1092-2, DIN EN 558-1 Series 15, ISO 5211, DIN EN 12266-1 / ISO 5208

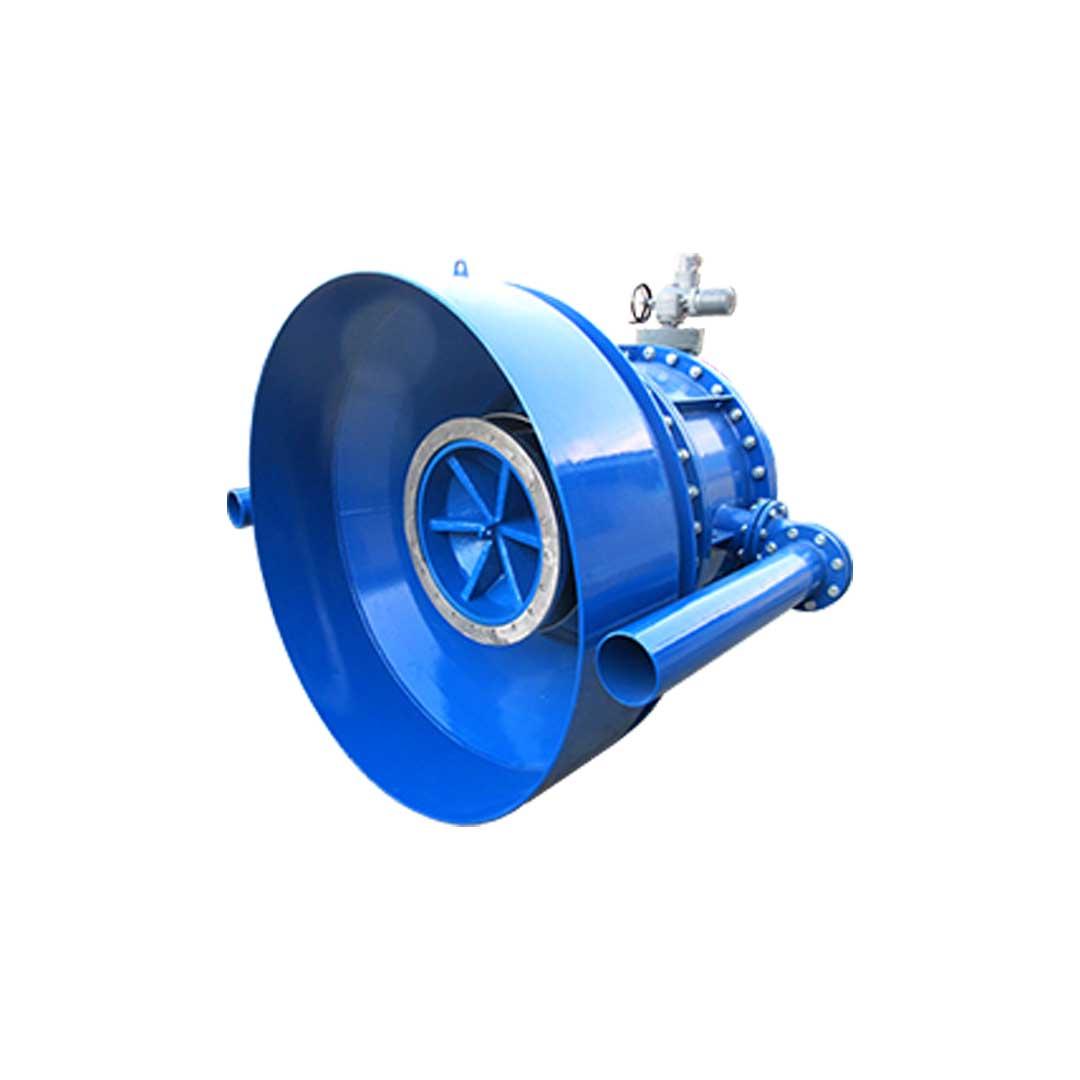

2. Howell Bunger Valve

DN Range: 500–2000 mm | PN Range: 10–25 bar

Used as main control valves for dams and reservoirs, Howell Bunger valves efficiently dissipate water energy while preventing cavitation.

Applications:

• Main outlet control in dams and reservoirs
• Energy dissipation in high-pressure water systems
• Flow control in large industrial pipelines

Key Features:

• High energy dissipation and low pressure drop
• Smooth sleeve movement with minimal risk of sticking
• Dual-stage metal-to-metal and rubber sealing
• Powder-coated epoxy finish (≥250 µm), safe for drinking water
• Standards: DIN EN 1092-2, ISO 5210, ISO 5211

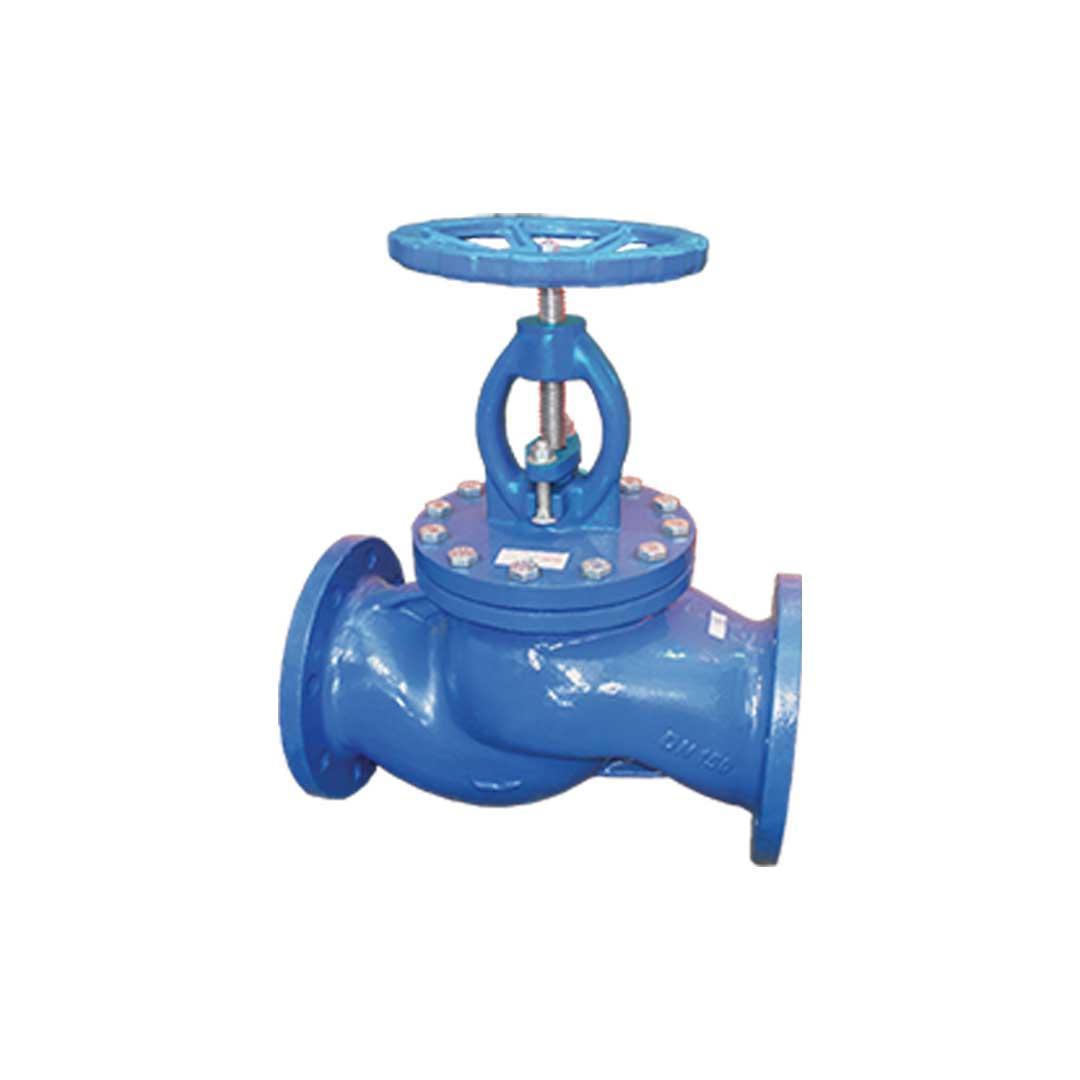

3. Globe (Supap) Valve

DN Range: 50–200 mm | PN Range: 10–25 bar

Globe supap valves are shut-off valves with metallic seats, suitable for precise on/off control of fluids, including hot and cold water and steam.

Applications:

• Industrial water systems
• Steam pipelines
• Hot and cold water installations

Key Features:

• Effective flow and pressure control with minimal vibration
• Non-rotating disc and shaft design for durability
• Easy maintenance and replacement of components
• Stainless steel sealing surfaces for extended life
• Powder-coated epoxy finish, tested per DIN EN 12266-1

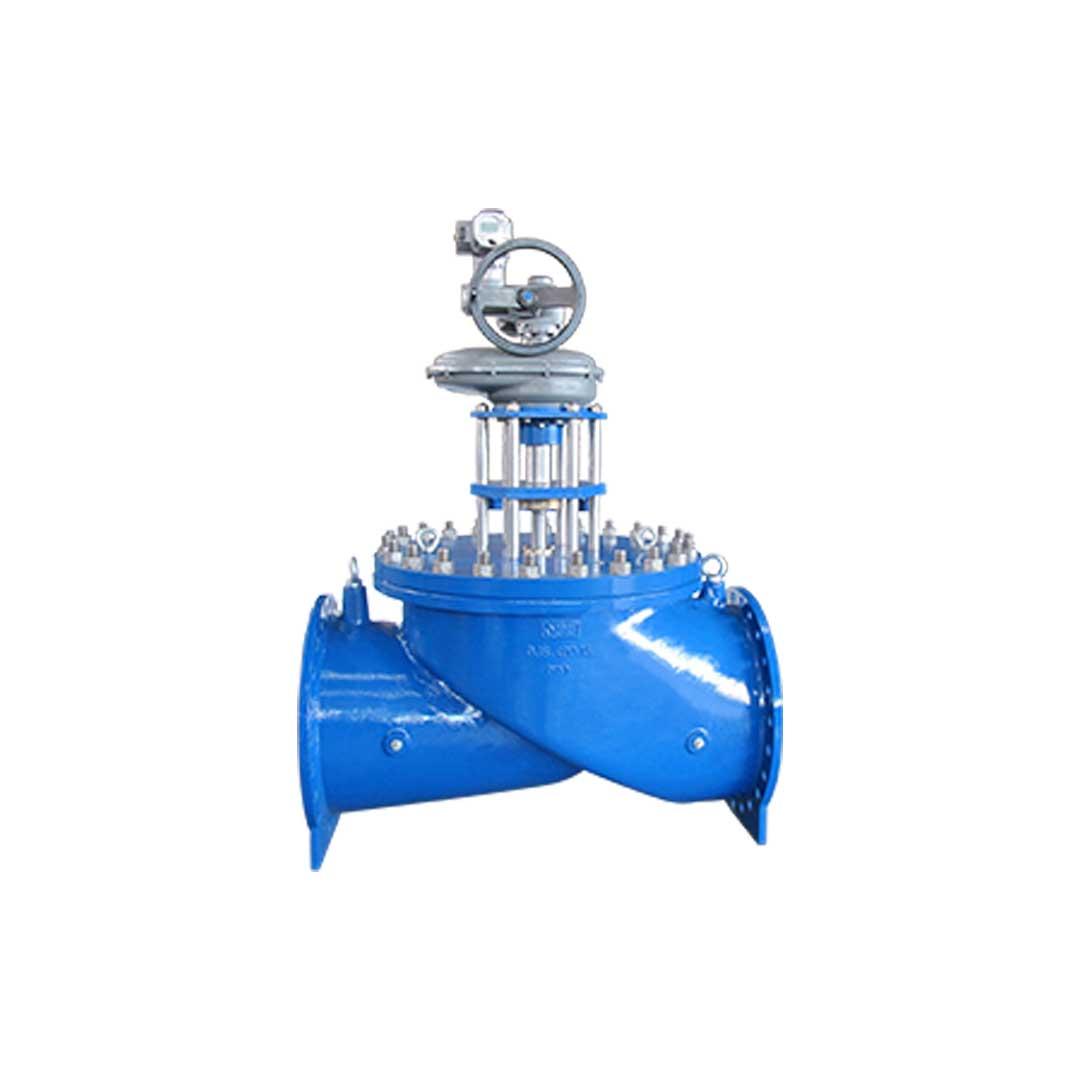

4. Globe Valve

DN Range: 200–1000 mm | PN Range: 10–40 bar

Globe valves provide robust shut-off capabilities for large pipelines, allowing precise flow regulation under high pressure.

Applications:

• Industrial process control
• Water and steam systems
• Non-corrosive fluid pipelines

Key Features:

• Precise flow control with minimal wear
• Non-rotating disk and shaft
• Long-lasting stainless steel sealing surfaces
• Minimal vibration and noise during operation
• Standards: DIN EN 558-1 Series 1, DIN EN 12266-1, DIN EN 1092-2

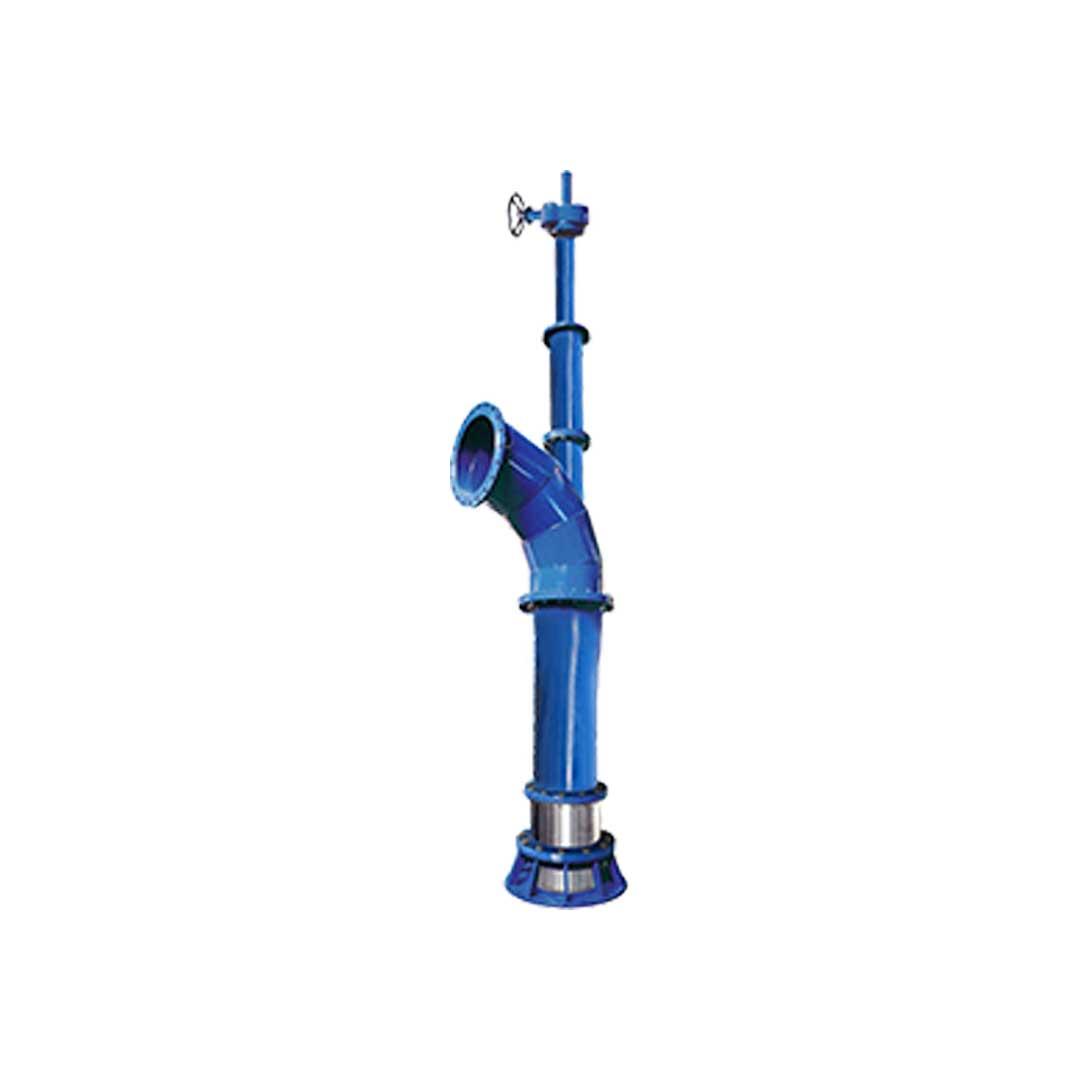

5. Sleeve Valve

DN Range: 400–2000 mm | PN Range: 10–25 bar

Sleeve valves are designed for hydraulic balancing and smooth control of high-pressure outflows, commonly used in dam outlets and irrigation channels.

Applications:

• Flow control in high-pressure dam outlets
• Water energy dissipation for irrigation channels
• Smooth operation in hydraulic systems

Key Features:

• Cylindrical sleeve for hydraulic balance
• Adjustable flow for precise operation
• Easy maintenance and actuator installation
• Powder-coated epoxy finish, ISO 5208 tested

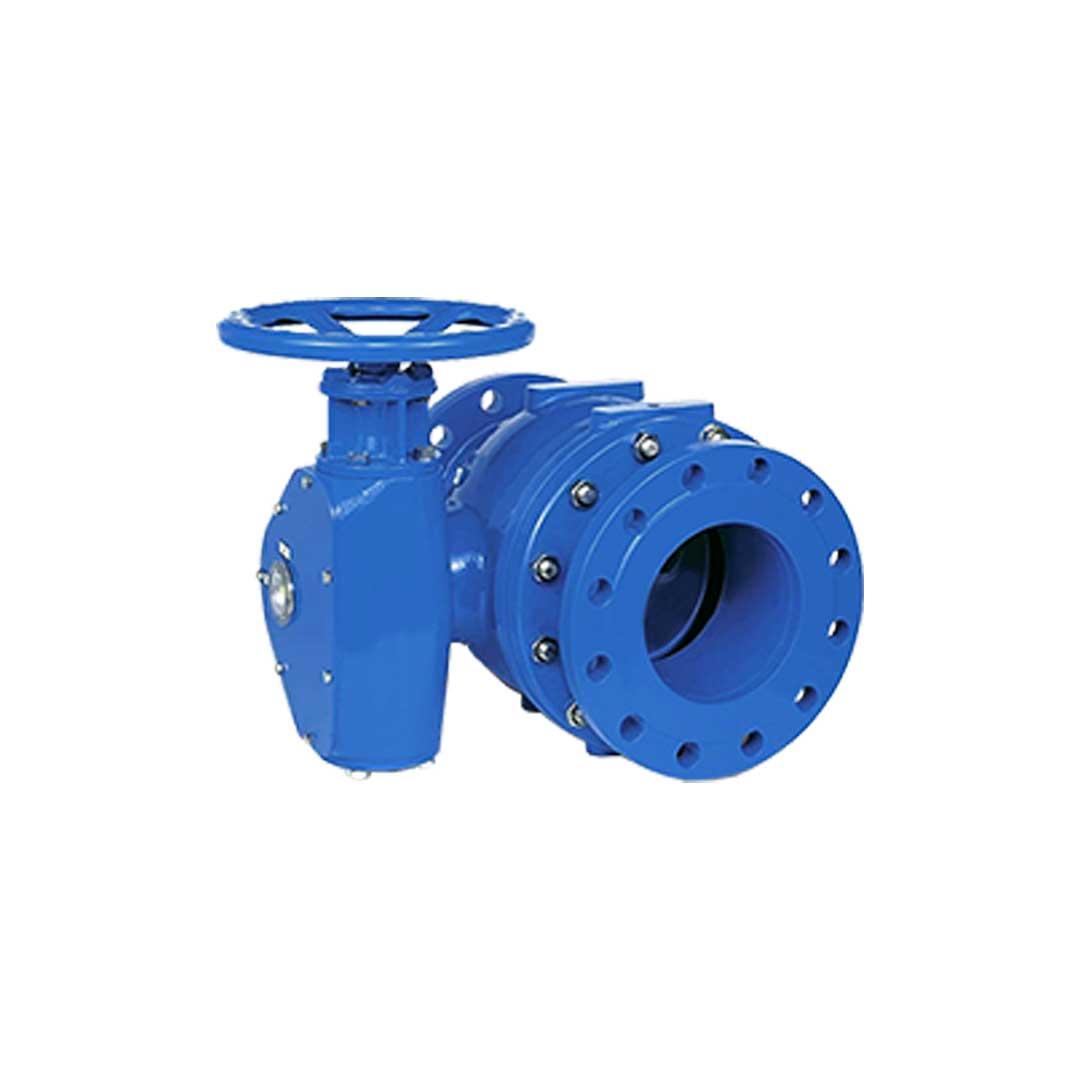

6. Ball Valve

DN Range: 80–1200 mm | PN Range: 10–40 bar

Ball valves serve as main control valves for dams and reservoirs, offering low-pressure drop, high energy dissipation, and reliable flow control.

Applications:

• Main outlet valves in reservoirs
• High-pressure water distribution
• Industrial pipelines requiring robust flow control

Key Features:

• Low pressure drop with efficient energy dissipation
• Smooth sleeve operation and minimal sticking
• Dual-stage sealing for maximum water tightness
• Powder-coated epoxy finish, safe for potable water
• Standards: DIN 1092-1, ISO 5210, ISO 5211

Valve Comparison Table

Why Choose Our Valves?

• Compliance with international standards (DIN, ISO)
• Powder-coated epoxy finish certified for drinking water
• Minimal vibration, precise control, and high durability
• Suitable for a wide range of pressures and diameters
• Easy maintenance and long operational life
• Cost-effective solutions for global exports
